FAG深沟球轴承(64系列、68系列、69系列）-部分参数附于文末

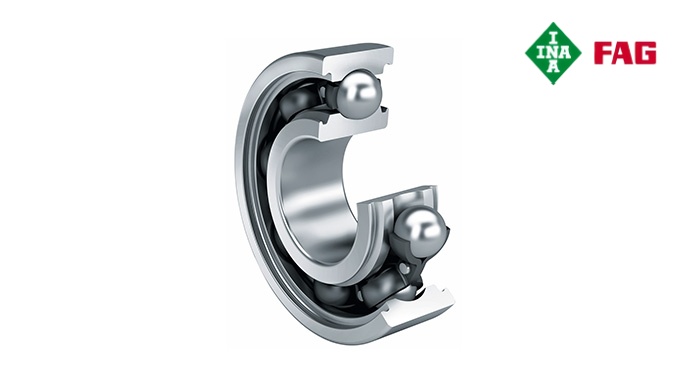

FAG深沟球轴承
深沟球轴承是一种多功能自保持轴承。这些轴承设计简单、运行可靠且易于维护，有单列和双列设计以及开式和密封式两种。
单列深沟球轴承是最常用的滚动轴承类型。它们有多种尺寸和设计，特别经济。由于摩擦扭矩非常低，开式轴承适用于高速和超高速。带间隙密封的轴承设计适用于高速。
单列深沟球轴承仅适用于非常有限的程度的静态错位补偿。因此，轴承位置必须很好地对齐。
双列深沟球轴承在结构上与一对单列深沟球轴承相对应，但具有两个滚道槽，每个滚道槽有一排球。由于滚动体数量较多，它们可以承受比单列深沟球轴承更高的载荷。
双列轴承用于单列深沟球轴承承载能力不足的地方。由于轴承还可以支撑倾斜载荷，因此它们适用于仅由一个轴承支撑的特别短的轴。
倘若您希望深入了解FAG INA轴承的相关信息或者想获取关于FAG INA轴承更为详尽的资讯，请致电18810892088
联系地址：北京市通州区马驹桥镇联东U谷西区2号院118栋（澳康联大厦）
集团官网：www.aklgj.com
主营业务：德国舍弗勒集团（FAG_INA）大中华区A级授权经销商；证书编号：C408401016
联系人姓名：刘鑫颖
联系人电子邮箱：3031273539@qq.com
联系人手机号码：18810892088
邮编：101100
| 产品规格型号 | 孔径d(mm) | 外径D(mm) | 宽度T(mm) | 径向动态额定载荷Cr (N) | 径向静态额定载荷C0r (N) |
| FAG 6408-C | 40 | 110 | 27 | 68,000 | 38,000 |
| FAG 6408-C-2Z | 40 | 110 | 27 | 68,000 | 38,000 |
| FAG 6408-C-2Z-C3 | 40 | 110 | 27 | 68,000 | 38,000 |
| FAG 6408-C-C3 | 40 | 110 | 27 | 68,000 | 38,000 |
| FAG 6409-C | 45 | 120 | 29 | 83,000 | 47,500 |
| FAG 6409-C-2Z | 45 | 120 | 29 | 83,000 | 47,500 |
| FAG 6409-C-2Z-C3 | 45 | 120 | 29 | 83,000 | 47,500 |
| FAG 6409-C-M-C3 | 45 | 120 | 29 | 83,000 | 47,500 |
| FAG 6410-C-C3 | 50 | 130 | 31 | 89,000 | 52,000 |
| FAG 6410-C-C4 | 50 | 130 | 31 | 89,000 | 52,000 |
| FAG 6411-C | 55 | 140 | 33 | 101,000 | 60,000 |
| FAG 6411-C-2Z | 55 | 140 | 33 | 101,000 | 60,000 |
| FAG 6411-C-C3 | 55 | 140 | 33 | 101,000 | 60,000 |
| FAG 6403 | 17 | 62 | 17 | 23,800 | 11,500 |
| FAG 6403-C3 | 17 | 62 | 17 | 23,800 | 11,500 |
| FAG 6407 | 35 | 100 | 25 | 56,000 | 31,500 |
| FAG 6407-2Z | 35 | 100 | 25 | 56,000 | 31,500 |
| FAG 6407-C-2Z>V | 35 | 100 | 25 | 62,000 | 31,500 |
| FAG 6407-C-C3>V | 35 | 100 | 25 | 62,000 | 31,500 |
| FAG 6407-C3 | 35 | 100 | 25 | 56,000 | 31,500 |
| FAG 6407-C>V | 35 | 100 | 25 | 62,000 | 31,500 |
| FAG 6408 | 40 | 110 | 27 | 68,000 | 38,500 |
| FAG 6408-2Z | 40 | 110 | 27 | 68,000 | 38,500 |
| FAG 6408-2Z-C3 | 40 | 110 | 27 | 68,000 | 38,500 |
| FAG 6408-C3 | 40 | 110 | 27 | 68,000 | 38,500 |
| FAG 6409 | 45 | 120 | 29 | 83,000 | 47,500 |
| FAG 6409-C-C3 | 45 | 120 | 29 | 83,000 | 47,500 |
| FAG 6409-C-M-C4 | 45 | 120 | 29 | 83,000 | 47,500 |
| FAG 6409-C3 | 45 | 120 | 29 | 83,000 | 47,500 |
| FAG 6410 | 50 | 130 | 31 | 89,000 | 52,000 |
| FAG 6410-2Z | 50 | 130 | 31 | 89,000 | 52,000 |
| FAG 6410-C | 50 | 130 | 31 | 89,000 | 52,000 |
| FAG 6410-C3 | 50 | 130 | 31 | 89,000 | 52,000 |
| FAG 6410-C4 | 50 | 130 | 31 | 89,000 | 52,000 |
| FAG 6411 | 55 | 140 | 33 | 100,000 | 60,000 |
| FAG 6411-2Z | 55 | 140 | 33 | 100,000 | 60,000 |
| FAG 6411-C3 | 55 | 140 | 33 | 100,000 | 60,000 |
| FAG 6412 | 60 | 150 | 35 | 115,000 | 69,000 |
| FAG 6412-C3 | 60 | 150 | 35 | 115,000 | 69,000 |
| FAG 6413 | 65 | 160 | 37 | 123,000 | 77,000 |
| FAG 6413-C3 | 65 | 160 | 37 | 123,000 | 77,000 |
| FAG 6413-C4 | 65 | 160 | 37 | 123,000 | 77,000 |
| FAG 6413-M | 65 | 160 | 37 | 123,000 | 77,000 |
| FAG 6413-M-C4 | 65 | 160 | 37 | 123,000 | 77,000 |
| FAG 6414 | 70 | 180 | 42 | 141,000 | 97,000 |
| FAG 6414-C3 | 70 | 180 | 42 | 141,000 | 97,000 |
| FAG 6414-C4 | 70 | 180 | 42 | 141,000 | 97,000 |
| FAG 6414-M-C3 | 70 | 180 | 42 | 141,000 | 97,000 |
| FAG 6414-M-C4 | 70 | 180 | 42 | 141,000 | 97,000 |
| FAG 6415-M | 75 | 190 | 45 | 141,000 | 97,000 |
| FAG 6415-M-C3 | 75 | 190 | 45 | 141,000 | 97,000 |
| FAG 6415-M-C4 | 75 | 190 | 45 | 141,000 | 97,000 |
| FAG 6416-M | 80 | 200 | 48 | 173,000 | 125,000 |
| FAG 6416-M-C3 | 80 | 200 | 48 | 173,000 | 125,000 |
| FAG 6417-M | 85 | 210 | 52 | 184,000 | 136,000 |
| FAG 6417-M-C3 | 85 | 210 | 52 | 184,000 | 136,000 |
| FAG 6418-M | 90 | 225 | 54 | 209,000 | 162,000 |
| FAG 6418-M-C3 | 90 | 225 | 54 | 209,000 | 162,000 |
| FAG 688-2Z>N | 8 | 16 | 5 | 1,260 | 590 |
| FAG 683-2RSR>N | 3 | 7 | 3 | 311 | 112 |
| FAG 684-2Z>N | 4 | 9 | 4 | 641 | 226 |
| FAG 684>N | 4 | 9 | 2.5 | 641 | 226 |
| FAG 685-2Z>N | 5 | 11 | 5 | 716 | 283 |
| FAG 685>N | 5 | 11 | 3 | 716 | 283 |
| FAG 686-2Z-HLN | 6 | 13 | 5 | 1,080 | 430 |
| FAG 687-2RSR>N | 7 | 14 | 5 | 1,180 | 511 |
| FAG 687-2Z>N | 7 | 14 | 5 | 1,180 | 511 |
| FAG 687>N | 7 | 14 | 3.5 | 1,180 | 511 |
| FAG 688-2RSR-HLN | 8 | 16 | 5 | 1,600 | 710 |
| FAG 688>N | 8 | 16 | 4 | 1,260 | 590 |
| FAG 689-2RSR>N | 9 | 17 | 5 | 1,330 | 664 |
| FAG 689-2Z-HLN | 9 | 17 | 5 | 1,600 | 730 |
| FAG 686-2RSR-CO7 | 6 | 13 | 5 | 1,080 | 430 |
| FAG 693-2Z>N | 3 | 8 | 4 | 559 | 179 |
| FAG 695-2RSR-HLN | 5 | 13 | 4 | 1,070 | 420 |
| FAG 695-2Z>N | 5 | 13 | 4 | 1,077 | 420 |
| FAG 696-2RSR-HLN | 6 | 15 | 5 | 1,340 | 517 |
| FAG 696-2Z>N | 6 | 15 | 5 | 1,340 | 517 |
| FAG 698-2RSR>N | 8 | 19 | 6 | 2,240 | 912 |
| FAG 698-2Z>N | 8 | 19 | 6 | 2,240 | 912 |
| FAG 699-2RSR>N | 9 | 20 | 6 | 2,470 | 1,070 |
| FAG 699-2Z>N | 9 | 20 | 6 | 2,470 | 1,070 |
